The science

Discover the science
behind Simbryo.

Watch the video
Simbryo scientists in the lab
The Simbryo assay

A functional model of implantation.

Using a patient's biopsy tissue, we create endometrial organoids, tiny living models of the patient's own uterine lining. Combining these with blastoids, model embryos, we recreate the patient-specific implantation process in the lab, so we can directly test what is and isn't working for that patient.

Organoid z-stack
Organoids

Models of the uterine lining grown from endometrial biopsy samples. They capture the structure and hormone responsiveness of each patient's endometrium.

Blastoid fluorescence comparison
Blastoids

Standardized stem-cell-derived models of the embryo at day 5 or 6. Using blastoids removes issues of embryo quality as a variable, allowing us to examine endometrial fertility.

Micropatterning

We standardize the Simbryo assay by growing organoid-derived cells on micropatterned substrates that precisely control the tissue size and shape. This allows us to compare results across patients and to test multiple conditions in parallel.

Organoid micropattern field
Assay read-out

Successful implantation leads to blastoid invasion and hCG production.

The introduction of blastoids to organoid cultures mimics embryo transfer, including the penetration of blastoid cells through the endometrial lining and the production of hCG. We measure the quality of implantation via hCG levels from the culture media and images of the organoid-blastoid interface.

Low invasion vs. high invasion
Clinical data

Powerful predictions.

In a prospective study with over 100 IVF patients, Simbryo's organoid-based functional assay ("Simbryo FX") showed strong ability to predict embryo transfer outcomes.

Patients with recurrent failed transfers consistently show a failure to allow blastoid integration and hCG production. Patients with fewer or no failed transfers show a wider range of responses, with better-responding patients more likely to have successful embryo transfer.

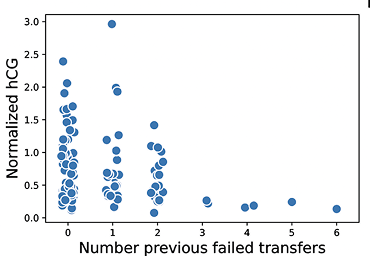

Normalized hCG vs. number of previous failed transfers

The combination of both low hCG production and low blastoid invasion predicted embryo transfer failure with greater than 90% specificity. In contrast, high levels of both hCG production and blastoid invasion predicted superior odds of success — over 80%.

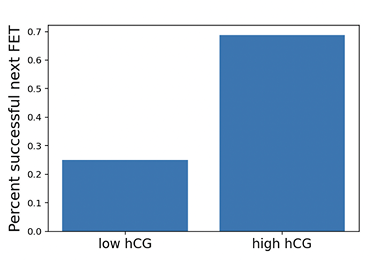

Percent successful next FET by low/high hCG

Simbryo FX diagnosed recurrent implantation failure, defined as three or more embryo transfer failures with PGT-tested euploid embryos, with high sensitivity and specificity.

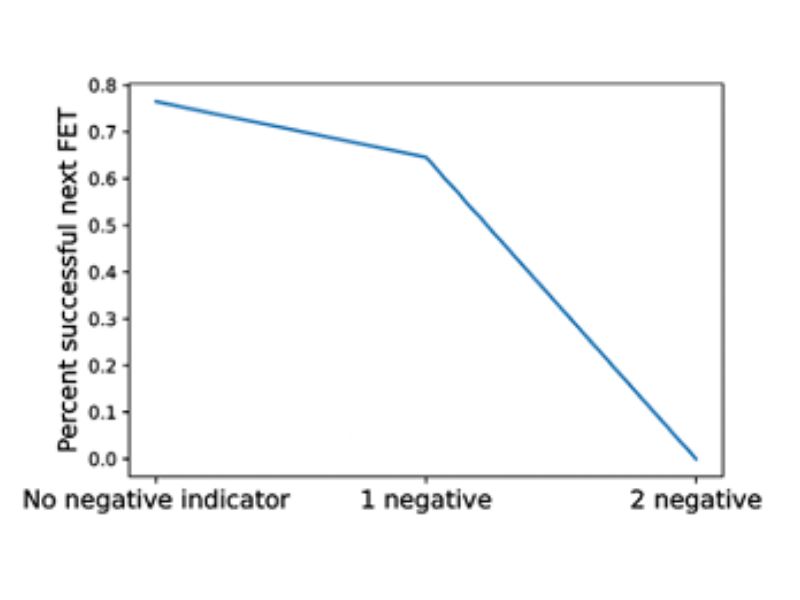

Percent successful next FET vs negative indicator count
Download our paper
Couple

Simbryo helps patients get on the best treatment path.

Imagine a patient who has gone through two failed embryo transfers. Are they simply unlucky, or is there an underlying issue hampering their odds? Or consider the patient who only has one or two embryos, and so limited opportunities to try.

A high Simbryo score gives patients like these confidence to move forward with more embryo transfer cycles, and stick with treatment despite previous setbacks rather than drop out, as so often happens. A low score, on the other hand, explains past failures and shows that further attempts are less likely to succeed, helping patients put plans in place for a longer journey or move to other options faster and with less emotional and financial toll.

Contact us to try Simbryo
Ongoing research

We are continuously working to enhance our platform.

With every Simbryo patient, we are gathering more data, which allows us to more finely stratify patients and make even more precise predictions and recommendations.

In collaboration with physician scientists at leading academic IVF centers, we are working with organoids from high-failure patients to test a wider variety of protocols, including comparing natural and programmed cycles, varying the window of implantation, and testing existing and novel adjuvants, to identify effective personalized interventions for such patients.

Finally, the Simbryo platform represents an exciting opportunity for drug development to identify and test new compounds which improve implantation, to help future patients achieve success in fewer cycles.

Collaborate with us

Pioneering fertility science.

Simbryo combines cutting-edge developmental biology, biotechnology, and clinical medicine to make fertility treatments more predictable and successful. Our work is built in collaboration with leading physicians, scientists, and engineers, and guided by deep empathy with the patient experience.

Get in touch
Already a customer?

Order kits, patient brochures, and access support.
